We are launching the
Installer Certification Program. We will have a list of
Certified BondKap / Wet Glaze professionals posted on
our web site.
Contact us to be
commercial and residential applications.
New size BK 2004 now 144"
long. For installations with longer windows and now with
three lengths, 144", 120" and 96" even more choices to

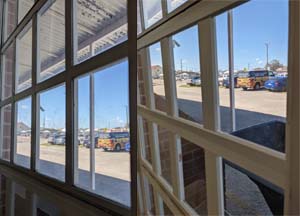

Colorado School district
installs security film and chooses BondKap for the
The largest BondKap
installation to date. Security film and BondKap
installed on every piece of glass at the Phoenix, AZ,
Sky Harbor, International Airport.
Materials, a GE company, has
partnered with FilmFastener to offer amazing pricing.
Contact us for details
Momentive conducted a test
of silicone with and without BondKap.
There is as much as a 45% increase in the holding
strength of the silicone with BondKap !
See the test report
Update to the
"BondKap Options" page to better illustrate which BondKap
can be used for different applications.
We added clickable perspective drawings and clickable
side view technical drawings.
Independent Testing was done at
PASSED ALL TESTING
Static Air Pressure, ASTM E 330-02
Level C Impact Test, ASTM E 1996-05
Cyclic Pressure Differential, ASTM E 1886-02
specimens were standard 3' patio doors with 3/16"
tempered glass and 8 mil security film applied. The
had BK 2002 on the top and bottom and BK 2003 on the
sides with Dow 995 white as the sealant of choice.
The first launch of the 2x4 set to the ASTM limit failed to break the glass. The cannon was reset to a
much higher pressure to assure the glass would break.
The glass broke with a small hole in the film to make
Next came the cyclic test which pushed the assembly to
its limits. Other than pieces of tempered glass falling
from the film and the metal frame getting fatigue
fractures the integrity of the assembly and attachment
The BondKap attachment did not chafe or cut into the
film in any way!
see the video
read the report
patio door installation
video is up for your viewing pleasure.
There is a high resolution and low
resolution video on the training page
Tower is completed
feet of BondKap installed by G. C. S. of Tampa, FL.
Window film magazine has a great write up on the project
and the use of BondKap.
Click to Read the caption on
The BK2004 installation video is
complete and ready for your viewing pleasure on the
Training & Demos page!

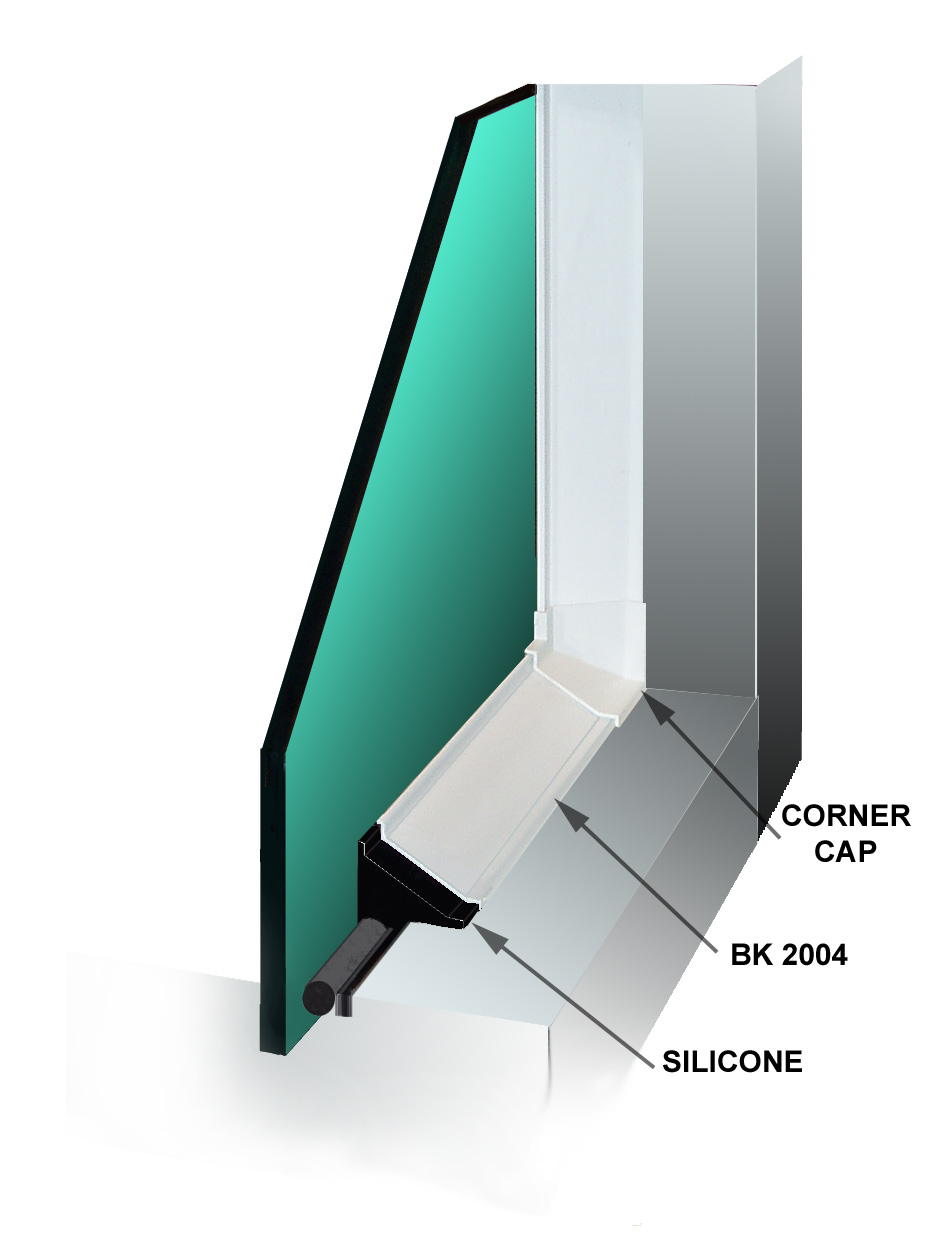

new corners will reduce the need for perfect mitered
cuts in the corners and speed up the installation
The corner caps
are in stock!
for larger image)

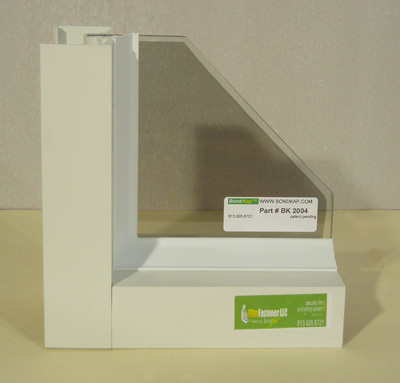

BondKap BK 2004, white and
black, has arrived!
The new profile is designed for 1/2" coverage on the
film and window frame. This profile meets the hurricane
and anti intrusion attachment specifications.

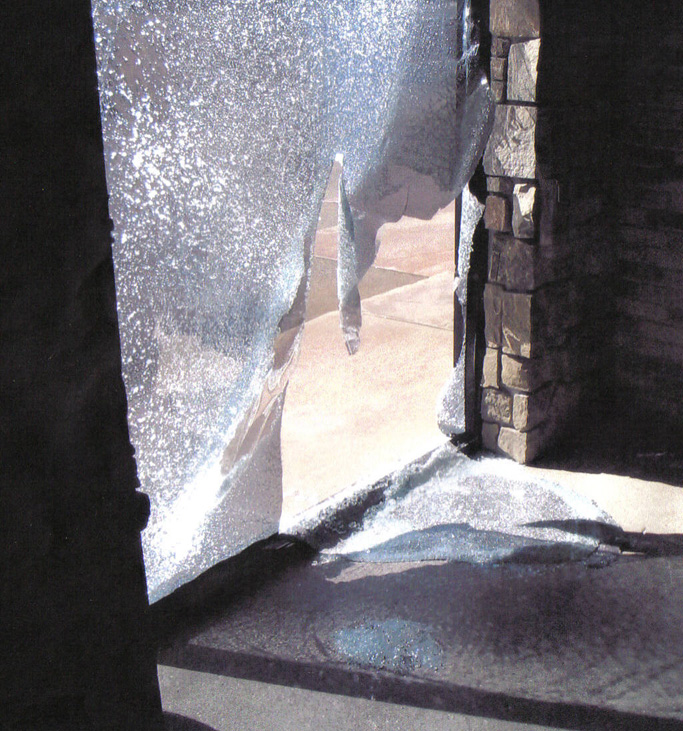

Josh Taylor at Tint Crafters of Arizona installed 8 mil security film and
used Dow Corning 995 with part number BK 2001 of the BondKap™ system. One
week after the installation a truck had backed through one of the windows.
for larger image)
Even though the truck
penetrated the glass and film the BondKap™ and silicone did not release.

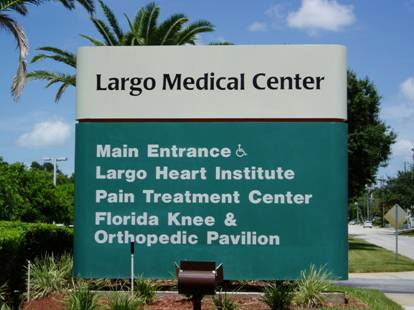

The Largo Medical Center requested a solar security
film installation with attachment. The installation
was performed by Solar Graphics of Clearwater, FL
using the BondKap™ anchoring system.
